TWIN WHEEL SWIVEL CASTOR GREY RUBBER

Twin-wheel swivel and braked castors with top plate or central hole fixing. Fitted with a grey non-marking rubber tyred wheel with plain bearing, they offer load capacity 60-80kg.

From £5.8903
Colour
Mid Grey
Material
ZP Pressed Steel Bracket With Grey Rubber Wheel

If you are designing or developing a new product or wish to test one of our products before purchasing, a free sample service is available for many of our products. Simply fill in the form below.

Customer Details

Product Sample Details

We offer a large range of castor and wheel products, please consider the below when choosing the correct product. For assistance, please contact our sales department 01282 424376 [email protected]

CASTOR TYPE: Choose from fixed (where the castor only moves forwards and backwards) Swivel (where the castor moves in any direction for best manoeuvrability) Braked (swivel castor that moves in any direction but with brake pedal that in most cases locks the swivel head and the wheel and in certain products just the wheel only).

WHEELS: Size, the larger the wheel the easier it is to move (measure the wheel diameter from one side to the other). Tread width (the thickness of the wheel). Bore size (the diameter of the hole in the centre of the wheel). Choose from a range of wheel materials, generally nylon wheels offer good weight capacity and are suitable for smooth surfaces. Tyred wheels offer more cushion for use on uneven surfaces.

PLATE TYPE: This is the fixing plate on the top of the castor bracket (choose either top plate with four fixing holes or single bolt hole type which has a central hole for fixing using a threaded stem or round/square expander fittings to go into tubes).

LOAD CAPACITY: The effect of uneven or damaged floors must be allowed for when assessing the required load rating of a castor. The degree of defects will determine the extra the extra shock loads acting on the castors. When using four castors on a product please use the weight load capacity of three out of the four castors to ascertain the safe working load and consider the alternative configurations shown in our advice article 'Understanding Castors'.

Lorem Ipsum is simply dummy text

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

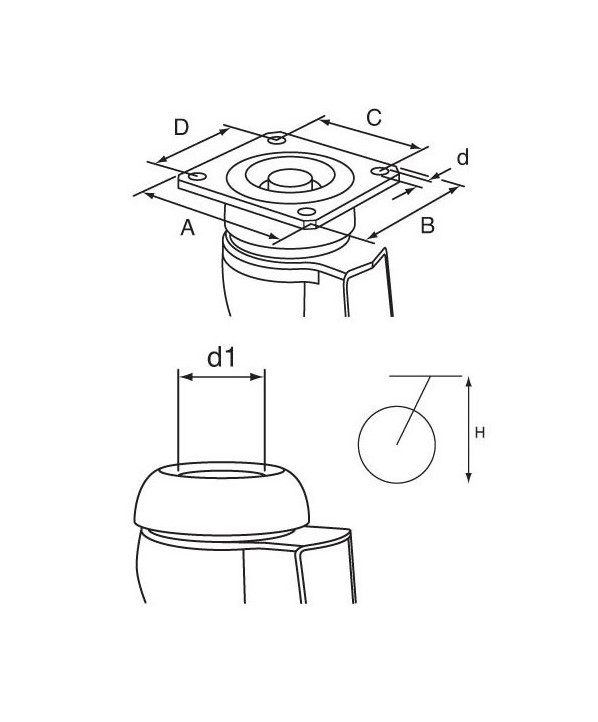

Part No. A x B C x D d d1 H Loading (kg) Plate Style Tread Width Type Wheel Dia Min Qty Price Lead Time
C27677G 60 x 60 a_x_b_up 46 x 46 6 - 101 80 Top Plate 24 Braked 75 1
£12.2400
4-5 Days Add To Cart
C27676G 60 x 60 a_x_b_up 46 x 46 6 - 101 80 Top Plate 24 Swivel 75 1
£9.9400
4-5 Days Add To Cart
C27672G 60 x 60 a_x_b_up 46 x 46 6 - 73 60 Top Plate 18 Braked 50 1
£8.6100
4-5 Days Add To Cart
C27671G 60 x 60 a_x_b_up 46 x 46 6 - 73 60 Top Plate 18 Swivel 50 1
£6.3500
4-5 Days Add To Cart
C27679G - a_x_b_up - - 10 101 80 Bolt Hole 24 Braked 75 1
£11.1200
4-5 Days Add To Cart
C27678G - a_x_b_up - - 10 101 80 Bolt Hole 24 Swivel 75 1
£8.7279
4-5 Days Add To Cart
C27674G - a_x_b_up - - 10 73 60 Bolt Hole 18 Braked 50 1
£7.6800
4-5 Days Add To Cart
C27673G - a_x_b_up - - 10 73 60 Bolt Hole 18 Swivel 50 1
£5.8903
4-5 Days Add To Cart
