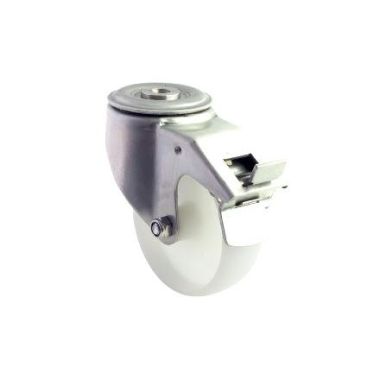

STAINLESS STEEL CASTOR 150-350kg WHITE NYLON

Cotel Stainless Steel Swivel and Fixed Castors have a pressed stainless steel housing and white nylon wheel with plain bearing. Load Ratings range from 150kg's to 350kg's. Ideal for catering equipment and hygienic applications.

From £12.8815
Colour
White
Material
Stainless Steel (304) With White Nylon Wheel

If you are designing or developing a new product or wish to test one of our products before purchasing, a free sample service is available for many of our products. Simply fill in the form below.

Customer Details

Product Sample Details

We offer a large range of castor and wheel products, please consider the below when choosing the correct product. For assistance, please contact our sales department 01282 424376 [email protected]

CASTOR TYPE: Choose from fixed (where the castor only moves forwards and backwards) Swivel (where the castor moves in any direction for best manoeuvrability) Braked (swivel castor that moves in any direction but with brake pedal that in most cases locks the swivel head and the wheel and in certain products just the wheel only).

WHEELS: Size, the larger the wheel the easier it is to move (measure the wheel diameter from one side to the other). Tread width (the thickness of the wheel). Bore size (the diameter of the hole in the centre of the wheel). Choose from a range of wheel materials, generally nylon wheels offer good weight capacity and are suitable for smooth surfaces. Tyred wheels offer more cushion for use on uneven surfaces.

PLATE TYPE: This is the fixing plate on the top of the castor bracket (choose either top plate with four fixing holes or single bolt hole type which has a central hole for fixing using a threaded stem or round/square expander fittings to go into tubes).

LOAD CAPACITY: The effect of uneven or damaged floors must be allowed for when assessing the required load rating of a castor. The degree of defects will determine the extra the extra shock loads acting on the castors. When using four castors on a product please use the weight load capacity of three out of the four castors to ascertain the safe working load and consider the alternative configurations shown in our advice article 'Understanding Castors'.

Lorem Ipsum is simply dummy text

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

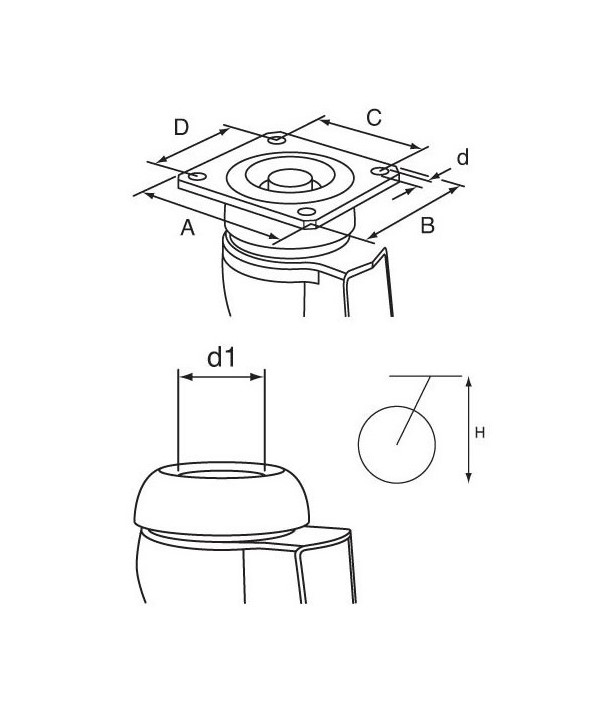

Part No. Type Plate Style Wheel Dia A x B C x D d1 d H Loading (kg) Tread Width Min Qty Price Lead Time
C27015N Braked type_up Bolt Hole 80 - - 12 - 105 150 25 1
£34.5752
In Stock Add To Cart
C27035N Braked type_up Bolt Hole 100 - - 12 - 128 150 30 1
£37.4495
4-5 Days Add To Cart
C27055N Braked type_up Bolt Hole 125 - - 12 - 155 200 37.5 1
£45.3445
4-5 Days Add To Cart
C27005N Braked type_up Top Plate 80 105 x 85 80 x 60 - 8 105 150 25 1
£35.9084
In Stock Add To Cart
C27025N Braked type_up Top Plate 100 105 x 85 80 x 60 - 8 128 150 30 1
£33.1903
4-5 Days Add To Cart
C27045N Braked type_up Top Plate 125 105 x 85 80 x 60 - 155 200 37.5 1
£36.8262
4-5 Days Add To Cart
C27085N Braked type_up Top Plate 160 140 x 110 105 x 80 - 10 195 350 45 1
£72.9590
4-5 Days Add To Cart
C27095N Braked type_up Top Plate 200 140 x 110 105 x 80 - 10 235 350 50 1
£81.9967
4-5 Days Add To Cart
C27003N Fixed type_up Top Plate 80 105 x 85 80 x 60 - 8 105 150 25 1
£12.8815
4-5 Days Add To Cart
C27023N Fixed type_up Top Plate 100 105 x 85 80 x 60 - 8 128 150 30 1
£16.7599
In Stock Add To Cart
C27043N Fixed type_up Top Plate 125 105 x 85 80 x 60 - 155 200 37.5 1
£22.6116
4-5 Days Add To Cart
C27083N Fixed type_up Top Plate 160 140 x 110 105 x 80 - 10 195 350 45 1
£42.4529
4-5 Days Add To Cart
C27093N Fixed type_up Top Plate 200 140 x 110 105 x 80 - 10 235 350 50 1
£54.2781
4-5 Days Add To Cart
C27011N Swivel type_up Bolt Hole 80 - - 12 - 105 150 25 1
£27.7712
In Stock Add To Cart
C27031N Swivel type_up Bolt Hole 100 - - 12 - 128 150 30 1
£30.4895
4-5 Days Add To Cart
C27051N Swivel type_up Bolt Hole 125 - - 12 - 155 200 37.5 1
£35.0774
4-5 Days Add To Cart
C27001N Swivel type_up Top Plate 80 105 x 85 80 x 60 - 8 105 150 25 1
£20.2224
In Stock Add To Cart
C27021N Swivel type_up Top Plate 100 105 x 85 80 x 60 - 8 128 150 30 1
£23.3738
In Stock Add To Cart
C27041N Swivel type_up Top Plate 125 105 x 85 80 x 60 - 155 200 37.5 1
£29.1562
4-5 Days Add To Cart
C27081N Swivel type_up Top Plate 160 140 x 110 105 x 80 - 10 195 350 45 1
£60.0954
4-5 Days Add To Cart
C27091N Swivel type_up Top Plate 200 140 x 110 105 x 80 - 10 235 350 50 1
£68.1115
4-5 Days Add To Cart
