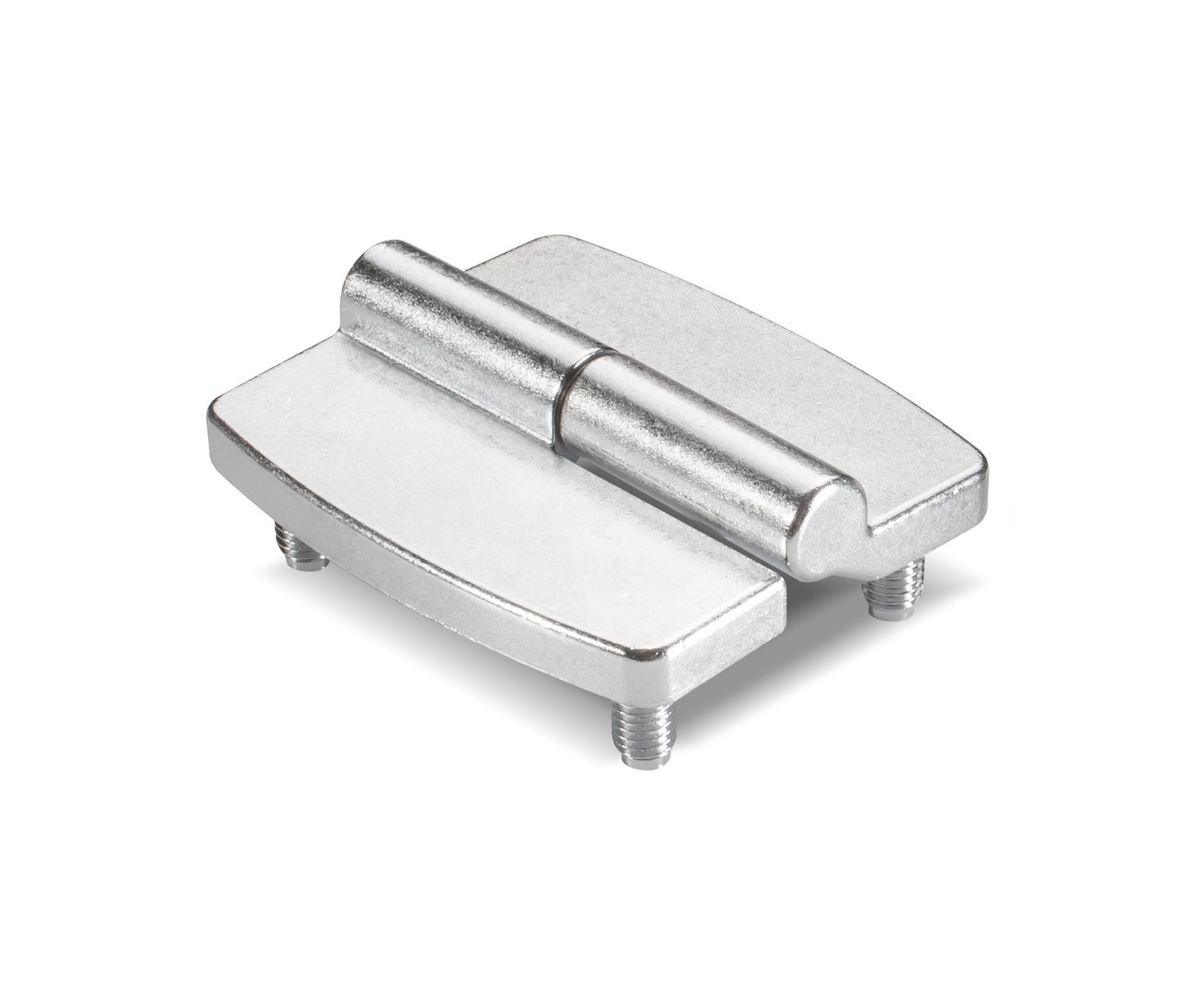

LARGE LIFT OFF HINGE MALE THREAD

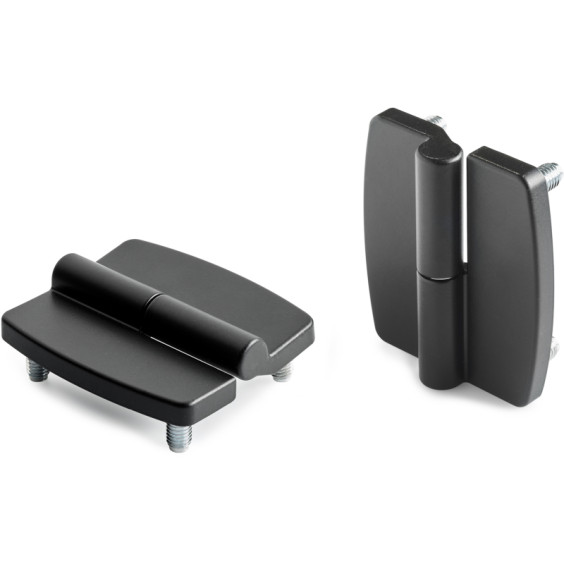

Die-cast zamak alloy large lift off hinges with threaded stud. Available in configurations for right and left opening doors.

From £28.7500
Colour
Black
Silver
Material
Die-Cast Zamak Alloy

If you are designing or developing a new product or wish to test one of our products before purchasing, a free sample service is available for many of our products. Simply fill in the form below.

Customer Details

Product Sample Details

Please consider the below when choosing the correct hinge product. For assistance, please contact our sales department 01282 424376 [email protected]

HINGE SIZE: Our hinges size are based on the outside size of the hinge, the distance between the fixing points is listed in the product table, please check these are correct for your application.

FIXING METHOD: Hinges are available with through hole for fixing with countersunk screw, male and female threaded versions are also available.

Lorem Ipsum is simply dummy text

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

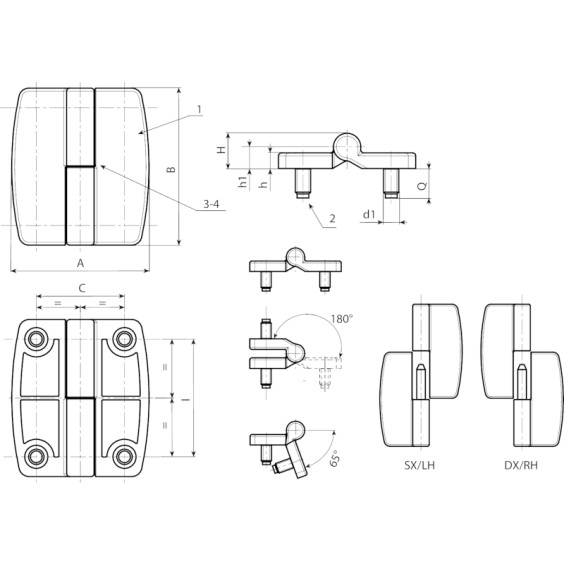

Part No. A B C d1 h1 h H I Q Type Min Qty Price Lead Time
M45592 70 80 b_up 45 M8 11 8 18 60 15 Right Hand 10
£28.7500
6-7 Weeks Add To Cart
M45593 70 80 b_up 45 M8 11 8 18 60 15 Left Hand 10
£28.7500
2-3 Weeks Add To Cart
M45594 70 80 b_up 45 M8 11 8 18 60 15 Right Hand 10
£28.7500
6-7 Weeks Add To Cart
M45595 70 80 b_up 45 M8 11 8 18 60 15 Left Hand 10
£28.7500
6-7 Weeks Add To Cart
reset
Order in multiples of
