6 POINT HANDWHEEL MALE THREAD

Cotel 6 Point Handwheels are available with threaded male studs in zinc plated steel and stainless steel. The industrial handwheels are produced in strong reinforced nylon providing high resistance to oils, chemicals and greases, and feature the lobed design which gives excellent grip during operation.

From £1.3133
Colour
Black
Material
Reinforced Polyamide
Insert Material
Steel ZP
Stainless Steel

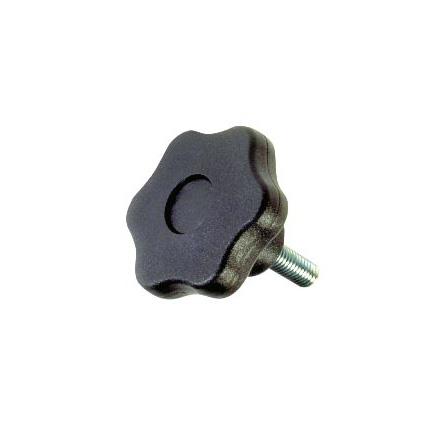

main product photo

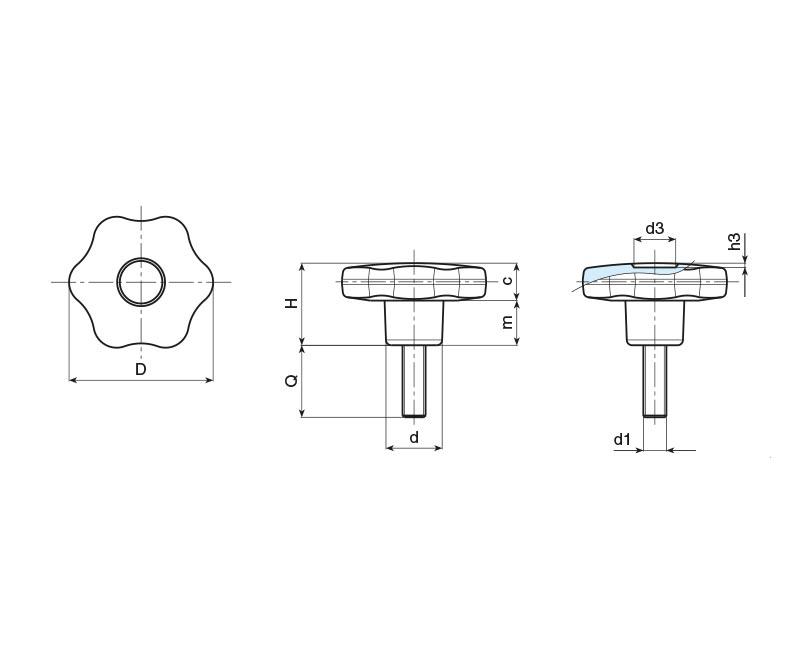

Tech Drawing
View Full Size

If you are designing or developing a new product or wish to test one of our products before purchasing, a free sample service is available for many of our products. Simply fill in the form below.

Customer Details

Product Sample Details

We offer a comprehensive range of different style knob, handle and handwheel products. Please consider the below when choosing the correct component. For assistance, please contact our sales department 01282 424376 [email protected]

DIAMETER / LENGTH: This the main dimension of the hand operated part of the component (measure the diameter across the handwheel or the length of the handle).

THREAD SIZE: This is thickness of the thread (M6, M8, M10, M12, M16). Generally, this is appropriate to the size of the component and is chosen based on the strength of the fixing required.

THREAD LENGTH: The length of the threaded stem (choose what length of thread is suitable for your application).

MATERIALS: Most of our knob and handle products are moulded in reinforced polyamide (PA6+GF) which offers temperature resistance -10 to +110°C. Female inserts are available in brass, zp steel and stainless steel, male inserts are zp steel and stainless steel.

Lorem Ipsum is simply dummy text

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.

Part No. D d H m d1 d3 Q Min Qty Price Lead Time
4636/30/80 30 15 d_lw 22 11 M6 9 10 1
£1.3133 		2-3 Weeks Add To Cart
4636/30/82 30 15 d_lw 22 11 M6 9 20 1
£1.3139 		In Stock Add To Cart
4636/30/83 30 15 d_lw 22 11 M6 9 25 1
£1.3830 		In Stock Add To Cart
4636/30/84 30 15 d_lw 22 11 M6 9 30 1
£1.3830 		In Stock Add To Cart
4636/30/86 30 15 d_lw 22 11 M6 9 40 1
£1.5786 		2-3 Days Add To Cart
4636/30/88 30 15 d_lw 22 11 M6 9 50 1
£1.5215 		In Stock Add To Cart
4636/30/81 30 15 d_lw 22 11 M6 9 15 1
£1.3139 		In Stock Add To Cart
4636/30/87 30 15 d_lw 22 11 M6 9 45 1
£1.5834 		In Stock Add To Cart
4636/30/102 30 15 d_lw 22 11 M8 9 20 1
£1.3139 		In Stock Add To Cart
4636/30/103 30 15 d_lw 22 11 M8 9 25 1
£1.3830 		In Stock Add To Cart
4636/30/104 30 15 d_lw 22 11 M8 9 30 1
£1.3823 		In Stock Add To Cart
4636/30/106 30 15 d_lw 22 11 M8 9 40 1
£1.5215 		In Stock Add To Cart
4636/30/122 30 15 d_lw 22 11 M10 9 20 1
£1.3830 		2-3 Weeks Add To Cart
4636/30/84STST 30 15 d_lw 22 11 M6 St Steel 9 30 1
£1.9649 		In Stock Add To Cart
4636/30/81STST 30 15 d_lw 22 11 M6 St Steel 9 15 1
£2.3463 		2-3 Days Add To Cart
4636/30/339 30 15 d_lw 22 11 1/4-20 UNC 9 25 1
£1.7679 		In Stock Add To Cart
4636/40/102STST 40 17 d_lw 24.5 12.5 M8 St Steel 12 20 1
£2.9694 		In Stock Add To Cart
4636/40/106STST 40 17 d_lw 24.5 12.5 M8 St Steel 12 40 1
£3.1605 		2-3 Days Add To Cart
4636/40/332 40 17 d_lw 24.5 12.5 5/16-18 UNC 12 25 1
£3.1246 		2-3 Days Add To Cart
4636/40/82 40 17 d_lw 24.5 12.5 M6 12 20 1
£1.8670 		In Stock Add To Cart
4636/40/81 40 17 d_lw 24.5 12.5 M6 12 15 1
£1.8670 		In Stock Add To Cart
4636/40/87 40 17 d_lw 24.5 12.5 M6 12 45 1
£2.1040 		In Stock Add To Cart
4636/40/102 40 17 d_lw 24.5 12.5 M8 12 20 1
£1.8670 		In Stock Add To Cart
4636/40/103 40 17 d_lw 24.5 12.5 M8 12 25 1
£1.9648 		In Stock Add To Cart
4636/40/104 40 17 d_lw 24.5 12.5 M8 12 30 1
£2.0350 		In Stock Add To Cart
4636/40/106 40 17 d_lw 24.5 12.5 M8 12 40 1
£2.0742 		In Stock Add To Cart
4636/40/108 40 17 d_lw 24.5 12.5 M8 12 50 1
£2.1040 		In Stock Add To Cart
4636/40/101 40 17 d_lw 24.5 12.5 M8 12 15 1
£1.8670 		In Stock Add To Cart
4636/40/107 40 17 d_lw 24.5 12.5 M8 12 45 1
£2.0742 		2-3 Days Add To Cart
4636/40/105 40 17 d_lw 24.5 12.5 M8 12 35 1
£2.0350 		In Stock Add To Cart
4636/40/122 40 17 d_lw 24.5 12.5 M10 12 20 1
£1.9740 		2-3 Weeks Add To Cart
4636/40/124 40 17 d_lw 24.5 12.5 M10 12 30 1
£2.0350 		2-3 Days Add To Cart
4636/40/125 40 17 d_lw 24.5 12.5 M10 12 35 1
£2.0742 		In Stock Add To Cart
4636/40/346 40 17 d_lw 24.5 12.5 1/4-20 UNC 12 38 1
£3.1395 		2-3 Weeks Add To Cart
4636/40/81STST 40 17 d_lw 24.5 12.5 M6 St Steel 12 15 1
£2.7649 		In Stock Add To Cart
4636/40/339 40 17 d_lw 24.5 12.5 1/4-20 UNC 12 25 1
£2.8076 		2-3 Days Add To Cart
4636/50/102 50 20 d_lw 29 15 M8 14.5 20 1
£2.2121 		In Stock Add To Cart
4636/50/103 50 20 d_lw 29 15 M8 14.5 25 1
£2.2121 		2-3 Days Add To Cart
4636/50/104 50 20 d_lw 29 15 M8 14.5 30 1
£2.2121 		2-3 Days Add To Cart
4636/50/106 50 20 d_lw 29 15 M8 14.5 40 1
£2.3505 		In Stock Add To Cart
4636/50/110 50 20 d_lw 29 15 M8 14.5 60 1
£2.4886 		2-3 Weeks Add To Cart
4636/50/122 50 20 d_lw 29 15 M10 14.5 20 1
£2.2121 		In Stock Add To Cart
4636/50/123 50 20 d_lw 29 15 M10 14.5 25 1
£2.3505 		In Stock Add To Cart
4636/50/124 50 20 d_lw 29 15 M10 14.5 30 1
£2.2815 		In Stock Add To Cart
4636/50/126 50 20 d_lw 29 15 M10 14.5 40 1
£2.3505 		In Stock Add To Cart
4636/50/157 50 20 d_lw 29 15 M12 14.5 45 1
£2.6266 		In Stock Add To Cart
4636/50/333 50 20 d_lw 29 15 5/16-18 UNC 14.5 30 1
£4.1827 		2-3 Days Add To Cart
4636/50/336 50 20 d_lw 29 15 3/8-16 UNC 14.5 25 1
£4.1232 		2-3 Days Add To Cart
4636/60/106 60 24 d_lw 34 18 M8 18 40 1
£2.9500 		2-3 Weeks Add To Cart
4636/60/123 60 24 d_lw 34 18 M10 18 25 1
£2.9036 		In Stock Add To Cart
4636/60/129 60 24 d_lw 34 18 M10 18 60 1
£3.3666 		2-3 Weeks Add To Cart
4636/60/154 60 24 d_lw 34 18 M12 18 30 1
£2.9222 		In Stock Add To Cart
4636/60/158 60 24 d_lw 34 18 M12 18 50 1
£3.0808 		In Stock Add To Cart
